Description

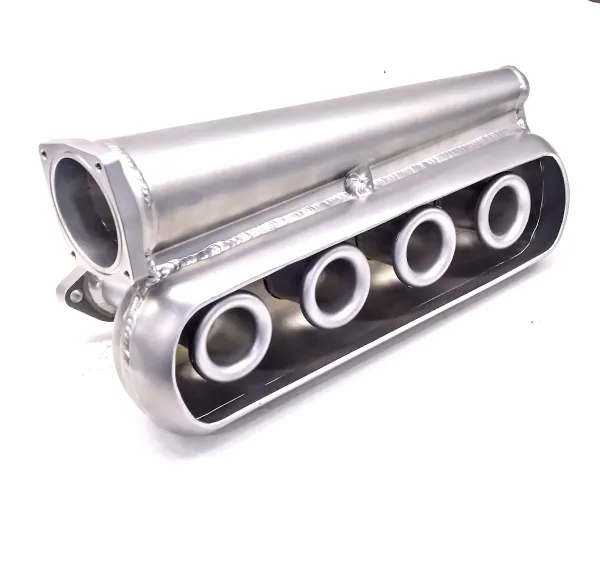

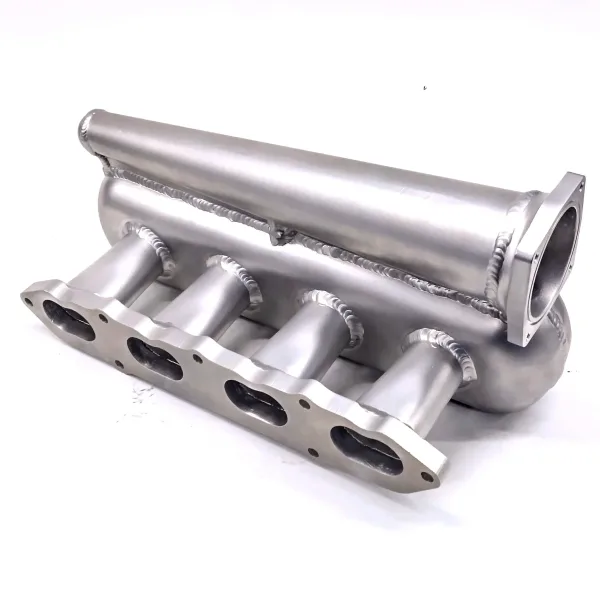

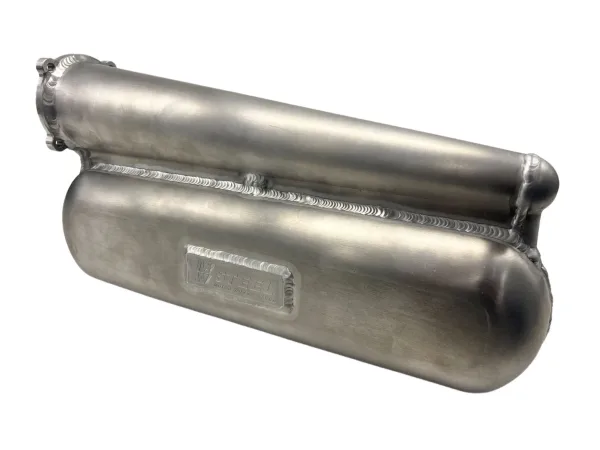

MW-Steel’s WRC-style Dual Plenum 2-chamber intake manifold universal DIY build kit, comprising a conical/tapered tube (primary chamber) and pressure box (secondary chamber).
This DP-intake manifold’s complies with Swiss physicist Bernoulli’s Principle, whereby in a tapered/conical pipe, the pressure of liquids and gases decreases while their flow speed increases. This results in uniform pressure and air flow distribution across all cylinders, enabling the use of equal and optimal ignition advances for all cylinders alike, resulting in maximum power, torque and engine longevity.
The DP-intake manifold is designed carefully to maximize Bernoulli’s airflow effect. As a result, the engine will run harmoniously, with reduced knocking and other non-desired stress factors, that compromise engine reliability and lifetime.
The build kit components are of lightweight, strong, corrosion resistant and highly machinable and weldable Al-6082 grade aluminum alloy, which is 5 times stronger than pure aluminum.
The cone tube can be flexibly positioned on the pressure box, facing front or back, according to the boost pipe entry direction, and left or right, according to available space in the engine compartment.

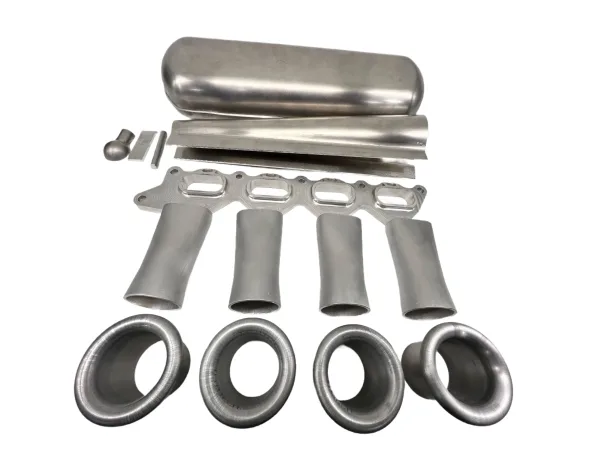

The delivery includes covers for both ends of the cone tube (flow-optimized cap for narrow end and cover plate for inlet end) as well as a support rod for the cone’s air exit slit to prevent the slit from expanding under extreme high pressure conditions.
Detailed weld and assembly instructions included.
MW Steel fabricated velocity cones, runner pipes, DBW throttle body flanges and CNC machined engine-specific intake manifold flanges, as well as other useful accessories for building the intake manifold, are also available in our web shop.
This 440 mm / 17.3″ kit is recommended for 3 and 4-cylinder as well as V6 and V8 engines.
Note: for V6 and V8 engines, order 2 pieces of this build kit, one per cylinder bank.
Dimensions:
– pressure box (mm / inches): Height 90 / 3.5″ x Width 120 / 4.7″ x Length 440 / 17.3″, wall thickness 4 mm / 5/32″
– cone tube: Length 380 mm / 15″, wall thickness 3 mm / 1/8″, inlet outer diam. 76mm / 3″
Volumes:
– pressure box: 3300 cc / 201 cui
– cone tube: 950 cc / 58 cui
– total volume: 4250 cc / 259 cui
