Description

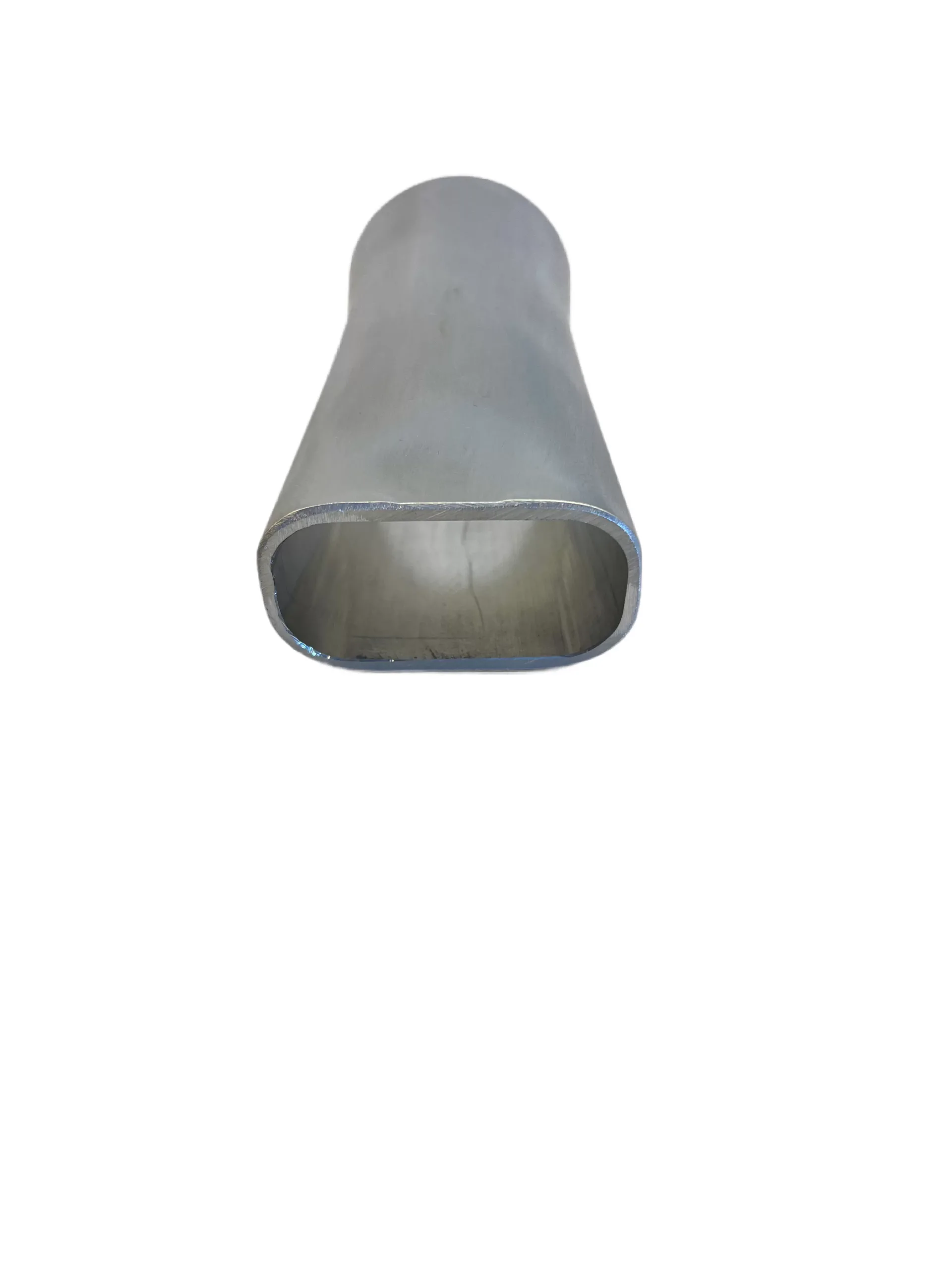

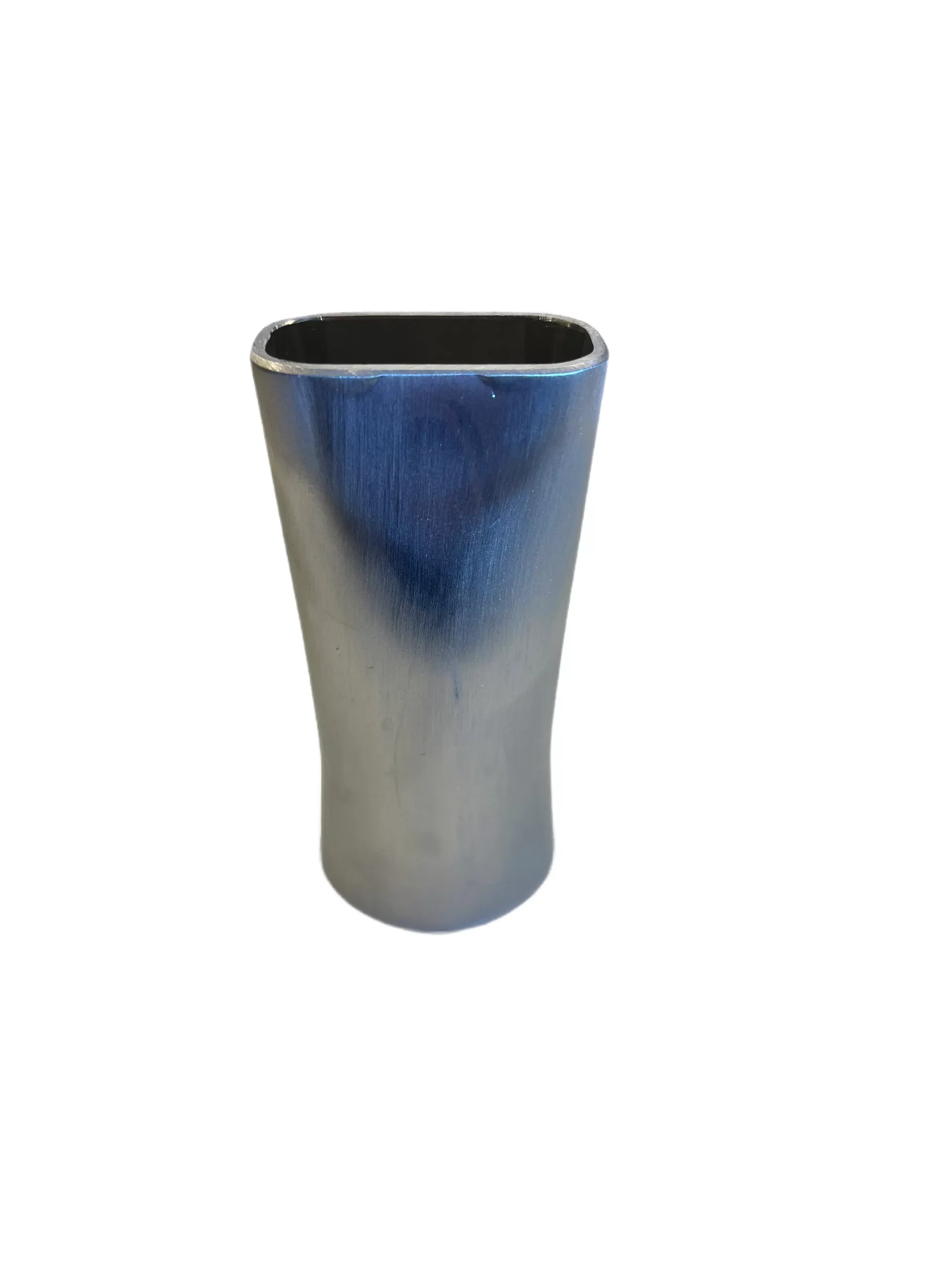

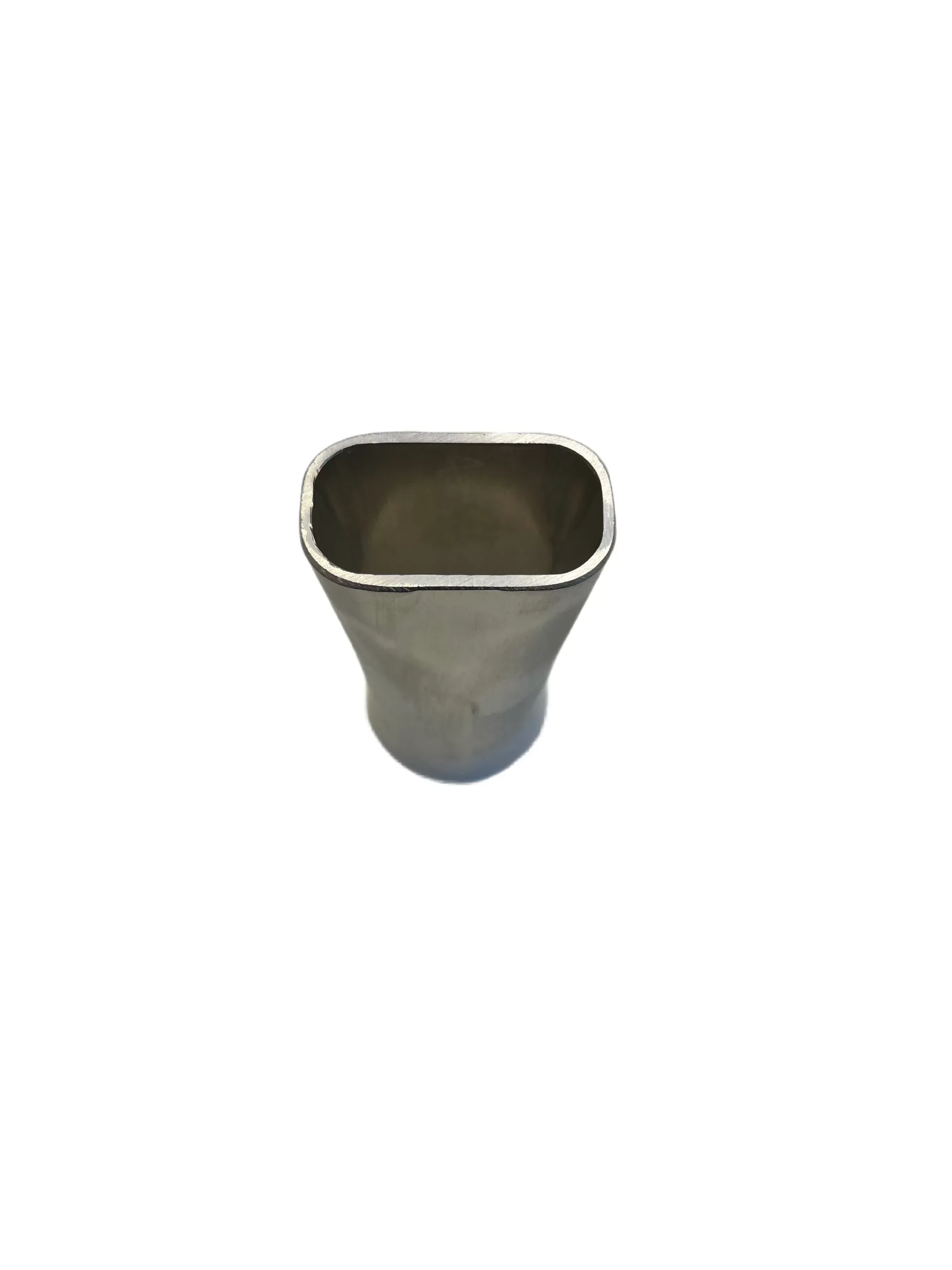

Profiled 6082-grade high quality aluminum alloy runner pipe between the intake manifold flange and pressure box (turbo engines) or throttle bodies (N/A engines).
The progressively tapered shape enhances air flow to the cylinder head.
Runners are available in a variety of sizes and shapes, see options.
Type-5 runner fits directly on the original intake manifold flange of e.g. Mitsubishi Evo I-IX 4G-63 engine
Runner pipe dimensions (see attached diagram for all dimensions):
– length: 120 mm
– round end inner/outer diameter: 50/56 mm
– rectangular end inner dimensions: 55 mm x 28 mm
– wall thickness: 3 mm
