Description

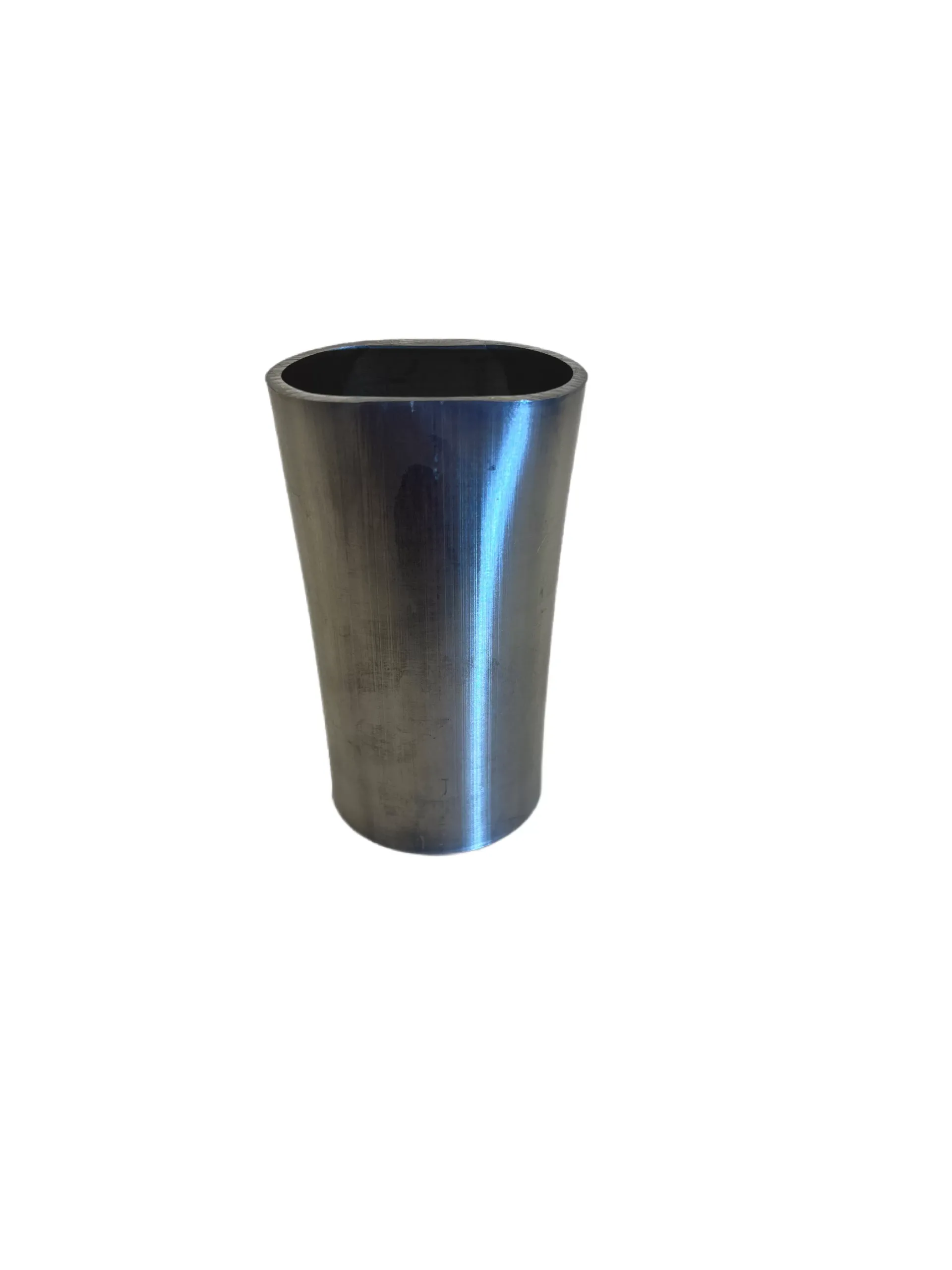

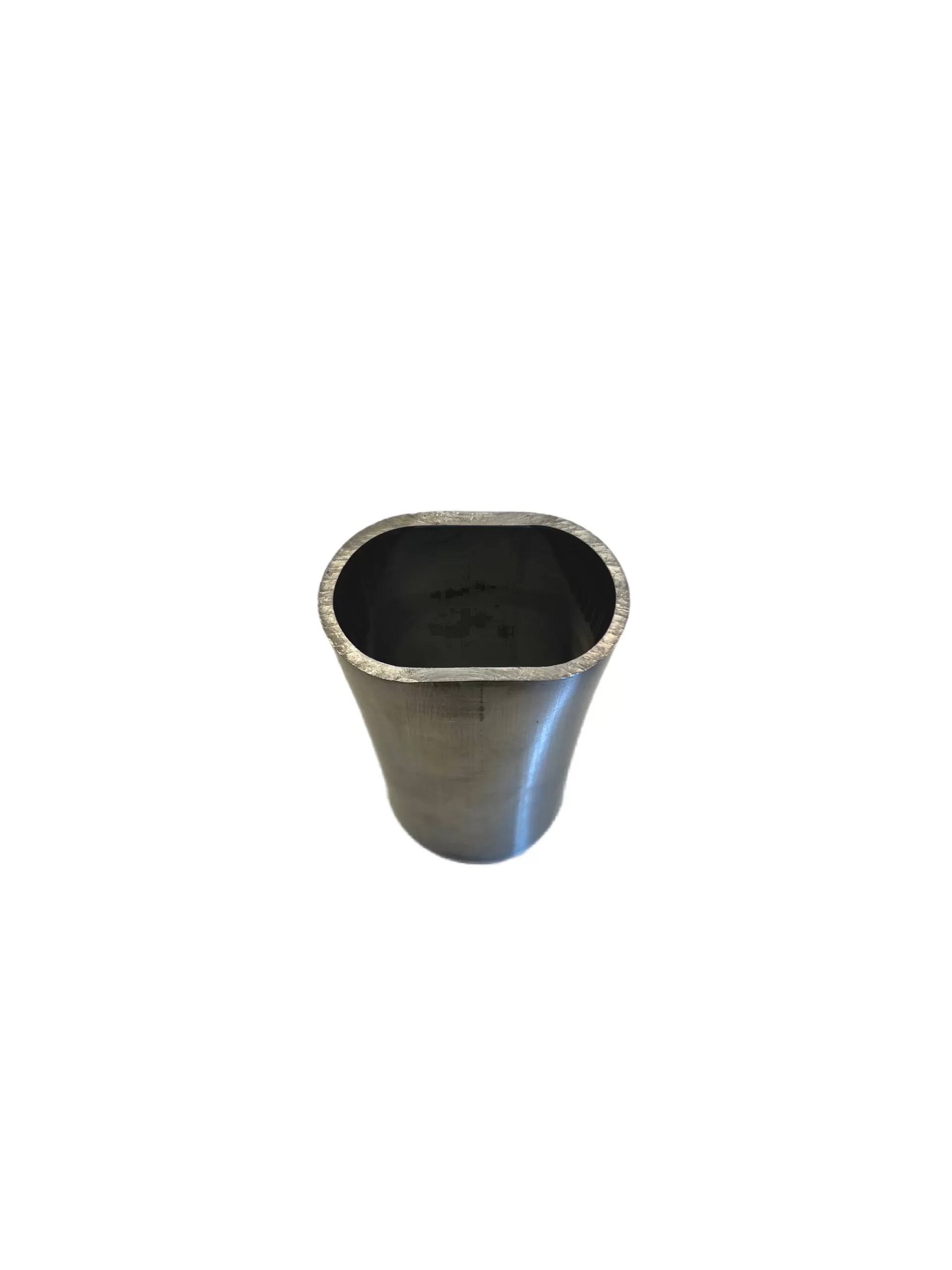

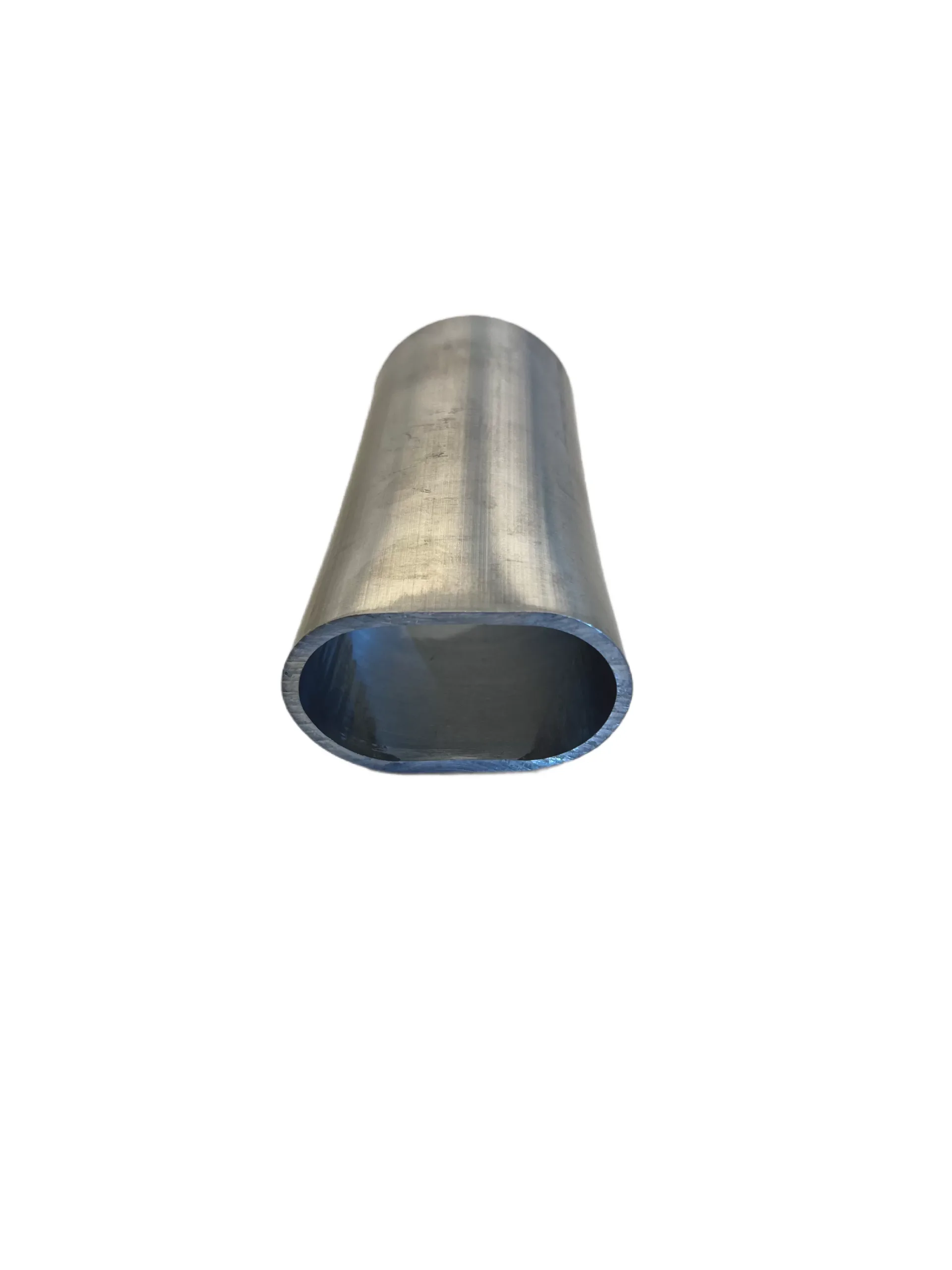

Profiled 6082-grade high quality aluminum alloy runner pipe between the intake manifold flange and pressure box (turbo engines) or throttle bodies (N/A engines).
The progressively tapered shape enhances air flow to the cylinder head.
Runners are available in a variety of sizes and shapes, see options.
Type-1 runner fits directly on the original intake manifold flange of e.g.
Toyotan 3S-GTE Gen.3
Toyota 2jz-gte/1jz-gte MW Steel CNC Flange
Mitsubishi 4b-11t
BMW B58 GEN1 MW Steel CNC Flange
MB M133
MB M111 oval
Ford COSWORTH 2.0 YB
VW 1.8T MW Steel CNC Flange
Runner pipe dimensions (see attached diagram for all dimensions):
– length: 100 mm
– round end inner/outer diameter: 44/50 mm
– rectangular end inner dimensions: 54 mm x 32 mm
– wall thickness: 3 mm
